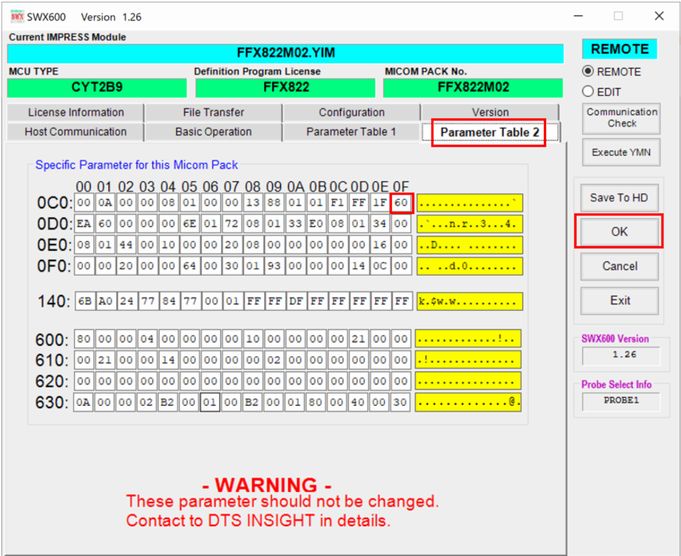

The WDT output mode can be changed by changing the value of 0CF address in Parameter Table 2.
address 0CF：bit 7 ■□□□□□□□
bit7＝1 : Output while programming (while /TICS output period）
bit7＝0 : Always output

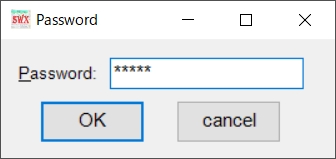

*Since you will be prompted to enter a password when accessing the screen of Parameter Table 2, please input ”AF200”.
*When changing the setting value on the screen of Parameter Table 2, please press the [OK] button at the right end of the screen to reflect the set value on the programmer.
