When using an 8GB CF card with the old NETIMPRESS series, you need to update the firmware to the latest version.
<Latest version>
NETIMPRESS next: AF430, AF430/CAN, AF430/JTAG, AF430/HSM, AF430/CFD
Firmware version: Ver13.08
G-NETIMPRESS: AF720, AF730
Firmware version: Ver12.74
C”arNETIMPRESS/Mega NETIMPRESS: AF320, AF420, AF520, AF620
Firmware version: Ver12.64
＜Update procedure＞
1. Download the update program from the following link on our website.
FirmwareUpdater.zip
2. Extract the downloaded Zip file to a convenient location.
3. Insert the CF card into the programmer, turn on the power, and connect the Ethernet cable.
4. Double-click the extracted FirmwareUpdater.exe file to launch it.
5. Enter the IP address and port number of the NETIMPRESS to be updated, then click the [Connect] button.

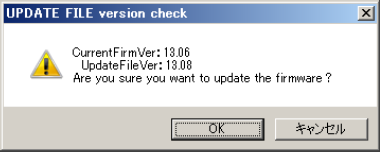

6. Once the Ethernet connection is established, the current firmware version and the version after the update will be displayed. If you wish to proceed with the update, click the [OK] button.
7. Once the process is complete, the following screen will appear; click the [OK] button.
8. Close the Firmware Updater and turn off the programmer unit.
