102B:ADDRESS WARNING
A warning will be displayed if the contents of a loaded object file (s file or hex file) contain addresses outside the target area of the Micom Pack. Data outside the target area will be skipped and not written.
Data outside the address range is discarded, so there is no problem leaving it as is, but if you do not want it to be displayed:
・Check if the addresses in the object file are within the address range of the microcontroller pack. Delete any data that is outside the range.

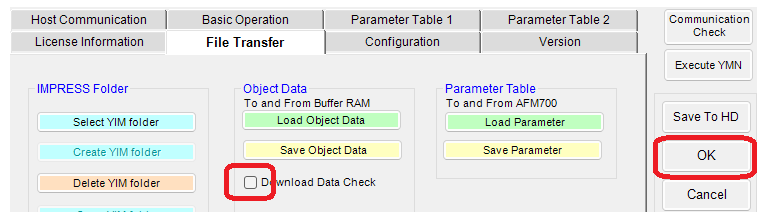

・Uncheck "Download Data Check" in SWX600-[File Transfer] and press the [OK] button on the far right of the screen to save the settings.
The warning display will be turned OFF.
Settings are saved per selecting YIM folder.
